Description

Choose a keypad controller option from the drop-down menu below and then “ADD TO CART”.

This scoreboard is perfect for basketball, volleyball, wrestling, karate tournaments, sparring, and much more. It’s thin-profile design is easy to use and easy to store.

View Detailed Product Specifications

SNT-144(P) Series Scoreboard – Detailed Specifications:

OPERATING MODES:

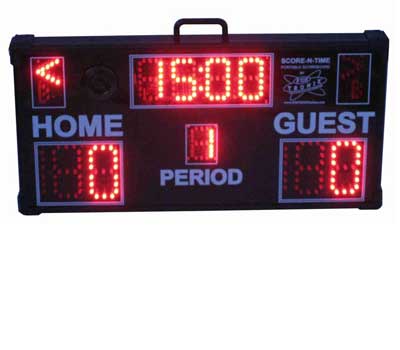

• Mode 1: Soccer, Hockey, Basketball
• Mode 2: Volleyball, Table Tennis
• Mode 3: Tournament mode – Martial Arts, Wrestling. Multiple timed rounds plus a sudden-death round
• Mode 4: Round Timer for Circuit Training, Sparring, etc. Workout round, warning bell, and resting round fully configurable
• Mode 5: Bocce Ball – Timed or untimed matches
• Mode 6: Count-up clock/Count-down Timer mode

The following additional modes are available on the SNT-140P models:

• Mode 7: Baseball mode with balls, strikes, and outs display
• Mode 8: Timed Baseball mode with balls, strikes, and outs display
• Mode 9: Soccer/Hockey/Basketball with team fouls/penalties display
• Mode 10: Basketball mode 24-second shot clock
• Mode 11: Basketball mode with 30-second shot clock
• Mode 12: Basketball mode with 35-second shot clock
• Mode 13: Football mode with downs and yards-to-first-down display

DISPLAY SIZE/HEIGHT:

• Game clock: 3 inches
• Score digits: 4 inches
• Period digit: 2 1/2 inches

GAME CLOCK SPECIFICATIONS:

• Range: 15 seconds to 99 minutes
• Resolution:

  -When remaining time is 1 minute or more: 1.0 second
  -When remaining time is less than 1 minute: 0.1 seconds

• Accuracy: Better than .001 seconds per hour

MISCELLANEOUS INFORMATION:

• Score Digit Range: 0 to 199 points
• Total Number of Periods: 9 plus Halftime and Overtime
• Other Indicators: team possession arrows (can be disabled) + team bonus lights
• Power Save Function: disables the display when scoreboard is not used for more than 8 minutes
• Save & Recall: allows the current game data to be saved and recalled for game play at a later time
• Short Timeout Feature: Can be set from 1 to 59 seconds
• Long Timeout Feature: Can be set from 1 to 99 minutes

ELECTRICAL SPECIFICATIONS:

Scoreboard:

• Battery Quantity x Type: 6 AA-size alkaline
• Battery Life: Indoor-Mode: up to 40 hours (depending on horn usage)
• Battery Life: Outdoor-Mode: up to 12 hours (depending on horn usage)

Wireless Keypad:

• Battery Type: 2 x AAA alkaline type
• Battery Life: Up to 50 hours

OPTIONAL AC ADAPTER REQUIREMENTS:

• Voltage: 9Vdc
• Current: 1200mA
• Connector Type: 2.1mm x 5.5 mm Barrel, center-positive

MECHANICAL SPECIFICATIONS:

• Horn Loudness: up to 110 dB
• Dimensions: 24” x 12” x 2 1/4” deep
• Weight: Approximately 7 pounds (with batteries)

Get this scoreboard for FREE! Click HERE for details.

Product appearance may vary slightly
